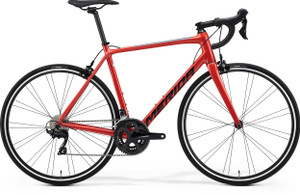

MERIDA SCULTURA 400 DISC

Our SCULTURA ENDURANCE 400 features a 6066 triple butted aluminium frame with the same geometry as the test and award-winning carbon fibre CF3 alternative. The more cost-effective yet beautifully crafted aluminium frame allows us to open up the super popular ENDURANCE family to a bigger audience without compromising on the sleek appearance of its carbon counterparts.

The SCULTURA ENDURANCE is the perfect choice for more leisure-focused cyclists who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Wide tyres offer plenty of comfort, even on the most pothole-littered country lanes, while a longer head tube provides a more relaxed riding position. An instant hit with the international cycling press and besides being given a 'comfort' award by RennRad, it also managed to get a long list of compliments like 'excellent comfort', ‘confidence inspiring', 'lively feel' and 'enjoyable' by reference cycling media such as Gran Fondo, Cyclingnews, Cyclingtips and Road.cc. Compared to its namesake, the SCULTURA, the ENDURANCE has a more comfort-orientated geometry, plenty of tyre clearance and seamless integration of the latest standards. It sits between the road-biased SCULTURA on one side and the gravel/adventure SILEX on the other, while the SCULTURA ENDURANCE GR lineup offers gravel-racing focussed options with off-road ready tyres and flared handlebars.

• Lightweight 6066 triple butted and hydroformed aluminium frame with comfort orientated geometry for confidence inspiring handling
• Shimano 105 12-speed groupset
• MERIDA EXPERT SL II wheelset
• Full carbon tapered fork
• WIRE PORT cable integration

frame SCULTURA ENDURANCE LITE

frame size 4XS, 3XS, XXS, XS, S, M, L, XL

color TEAL-BLUE (SILVER-BLUE)

fork SCULTURA ENDURANCE CF3 DISC

brakes Shimano 105

rotors Shimano RT10

brake lever Shimano 105

headset Acros ICR MERIDA EXTERNAL neck w/diecast splitring

handlebar MERIDA EXPERT SLII

handlebar stem MERIDA TEAM CC III

grip MERIDA ROAD Expert

derailleur (f) Shimano 105

derailleur (r) Shimano 105

shifters Shimano 105 disc

seat post MERIDA EXPERT CC

seat clamp MERIDA EXPERT

saddle MERIDA COMP SL

chain Shimano M6100-12

crank Shimano 105 R7100

freewheel Shimano 105 R7101

bottom bracket Shimano SM-BB72-41B

hubs Shimano HB-TC500 / Shimano HB-TC500-HL

rim MERIDA EXPERT SLII

tyre front Maxxis Detonator

tyre rear Maxxis Detonator

axles MERIDA EXPERT TR / MERIDA EXPERT SL

spokes Double Butted Black stainless

approx. weight 9.5 kg

Geometries

Frame Size	4XS	3XS	XXS	XS	S	M	L	XL
Tyre Sizes	28"	28"	28"	28"	28"	28"	28"	28"
ST seat tube [mm]	380	410	440	470	490	510	530	560
TT top tube [mm]	507	507	515	524	538	553	568	583
CS chain stay length [mm]	418	418	418	418	418	418	418	418
HTA head tube angle [°]	70	70	70.5	71	72	73	73	73.5
STA seat tube angle [°]	74.5	74.5	74	74	74	73.5	73.5	73.5
BD bottom bracket drop [mm]	70	70	66	66	66	66	66	66
HT head tube [mm]	125	130	140	152	161	177	197	222
FL fork length [mm]	380	380	380	380	380	380	380	380
R reach [mm]	360	360	360	366	376	380	389	397
S stack [mm]	528	532	539	552	565	584	603	629
WB wheel base [mm]	990	991	992	997	1001	1001	1017	1026
SH stand over height [mm]	656	680	708	734	752	770	790	818
